k/v stores

RocksDB

Dong, Siying, Andrew Kryczka, Yanqin Jin, and Michael Stumm. “RocksDB: Evolution of Development Priorities in a Key-Value Store Serving Large-Scale Applications.” ACM Transactions on Storage 17, no. 4 (2021): 1–32. https://doi.org/10.1145/3483840.

https://www.youtube.com/watch?v=Lxbb_7q8iRo
Better SSD efficiency
Better space efficiency
“if you fit the entire working set in ram, you have too much ram?”
- If all working set is in RAM, then you’re not being efficient with your ram
- What if we are writing back pages with one bit change? Terrible write amplification, only rows in LSM trees
- Are you trying to read keys that don’t exist? B-trees have this issue
LSM tree is more space efficient than b-trees
- wasting 1/3rd to 1/2 of the pool, but 10% with LSM tree. How?
Better write efficiency is that you use less space so less write efficiency
Secondary indices?
RocksDB is very hard to tune
- rocksdb_block_cache_size
- rocksdb_max_background_compactions
Uncommitted changes are buffered in memory by myrocks for tx’s

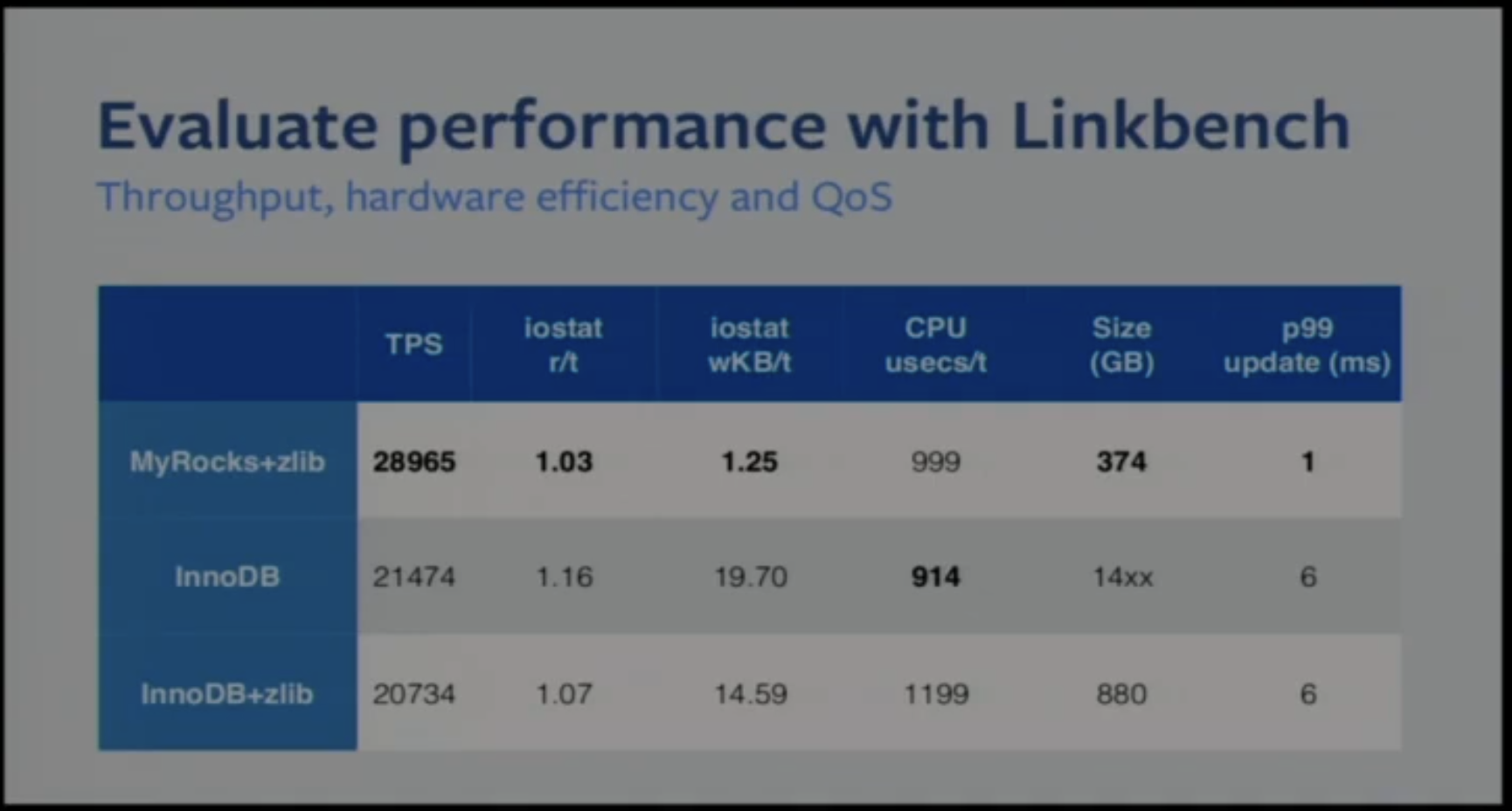

Performance

Build on RocksDB, but less management
Generic KV store, supports snapshot reads and partial read/write
Snapshot reads
- cheap operation that uses snapshot handlers to perform multiple reads
- basically RCU, but if you read while a write is happening the read goes to a snapshot
  - handles versions, whereas RCU doesn’t handle versions
  - also uses a cleaner or garbage collector or sweeper, whereas RCU places the burden on the writer
Data can be replicated either with gossip protocols or paxos, although usually there’s a master
- specific read only replicas called followers are occasionally added for high volume reads
Divides times into small epocs, each epoc zippy assigns a primary replica, that is the paxos leader
- Allows clients to choose which consistency level they come into (same as Spanner)
- Consistent reading -> clients go to the current primary of the shard
- Stale information -> can go to a replica
- Also allows for read-your-writes with a hash that signals to the replicas to manually update

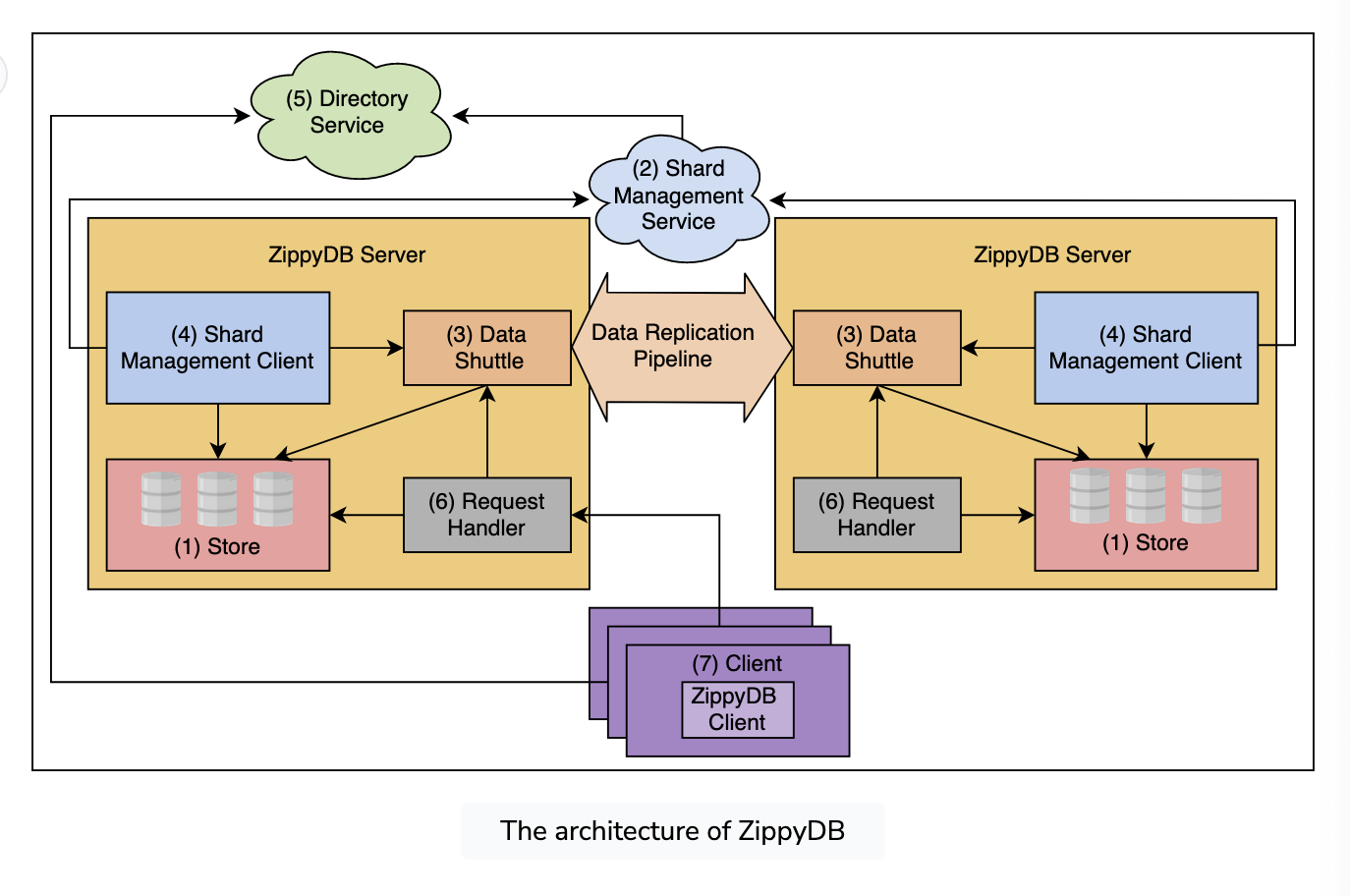

Has a data shuttle, which basically tiers it into Primary -> Secondary -> Follower, on per shard basis
- A shard is a box
Shard management service is the orchestrator, and tells each shard what they own, master that runs over the control plane
Store is based on top of RocksDB

Scalable Index Large Table, that internally uses multiple stores
\(read amplification = {data read from storage}/{data read by application}\)
\(write amplification = {data written to storage}/{data written by application}\)

RAM: index and filter, filters, index
- PUT and DELETE are both managed here
Storage: log, hash tables, sorted things

Write friendly store will append all PUT and DELETE into an in-storage log which makes the writing process fast, incoming requests are recorded as a write ahead log
Keep an in memory hash table that maps keys to their offset in the log, each entry in the hash table is added right after a successful entry in the in-storage log
Use a partial-key cuckoo hashing
- Use part of the key, cuckoo hashing requires two ahsh functions, each of which map to two candidate buckets in the hash table.
- Inserting/deleting a key:
  1. compute buckets h1(K1) and h2(K1), and check if one or both or none of the two buckets are empty
  2. If at least one bucket is empty, insert it into the bucket
  3. If both buckets are occupied, move or create a new table
- Doing a get:
  1. if we do a get, look it up in the hash table. If there’s nothing in the hash table, go to the intermediary stores

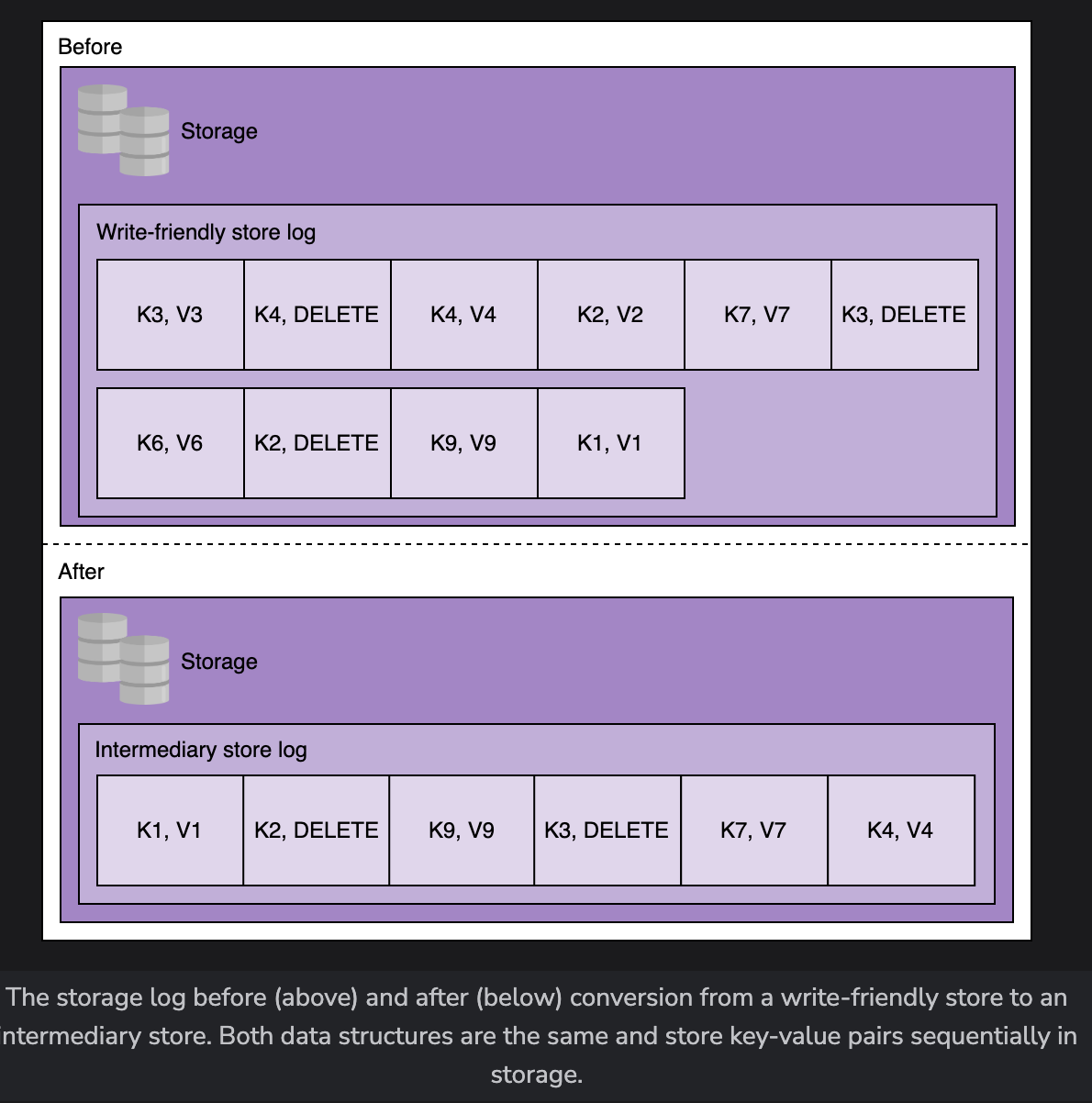

When the write-friendly store is full, it needs to create a new instance for further insertions
Basically compacts the log into a smaller log, sorted by hash

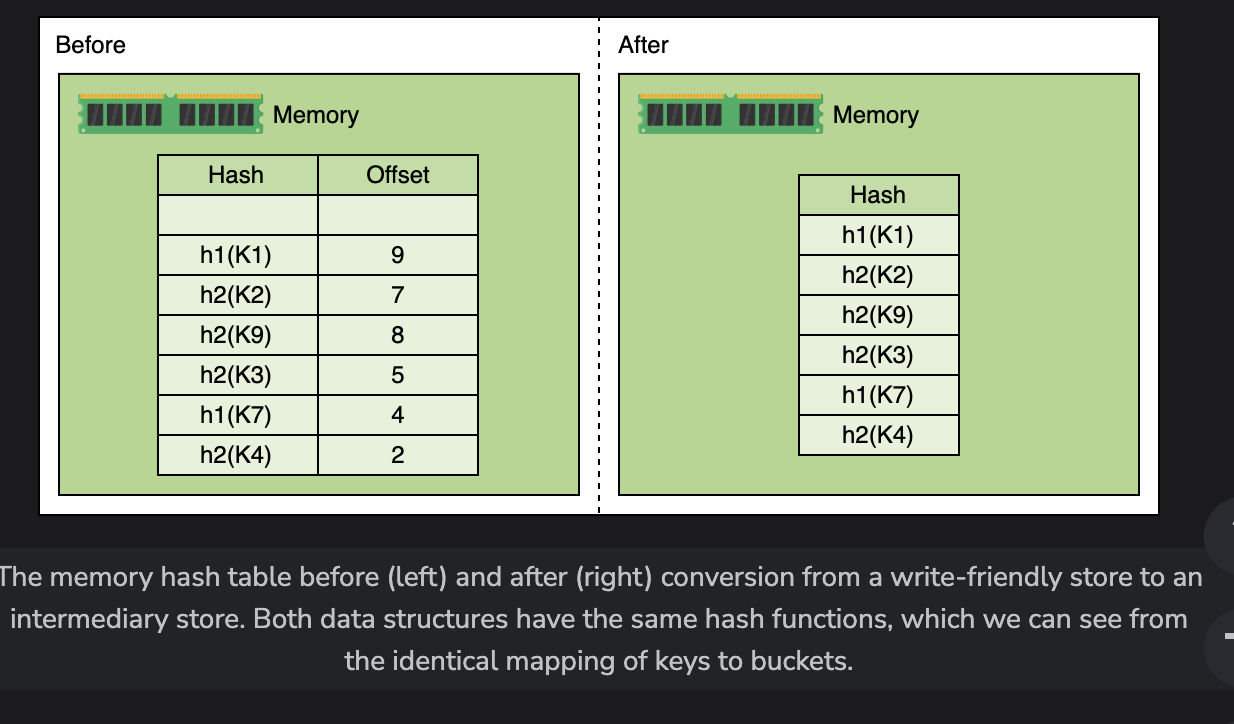

Similar to before, GETS can just use the hash table except it’s compacted for retrivals

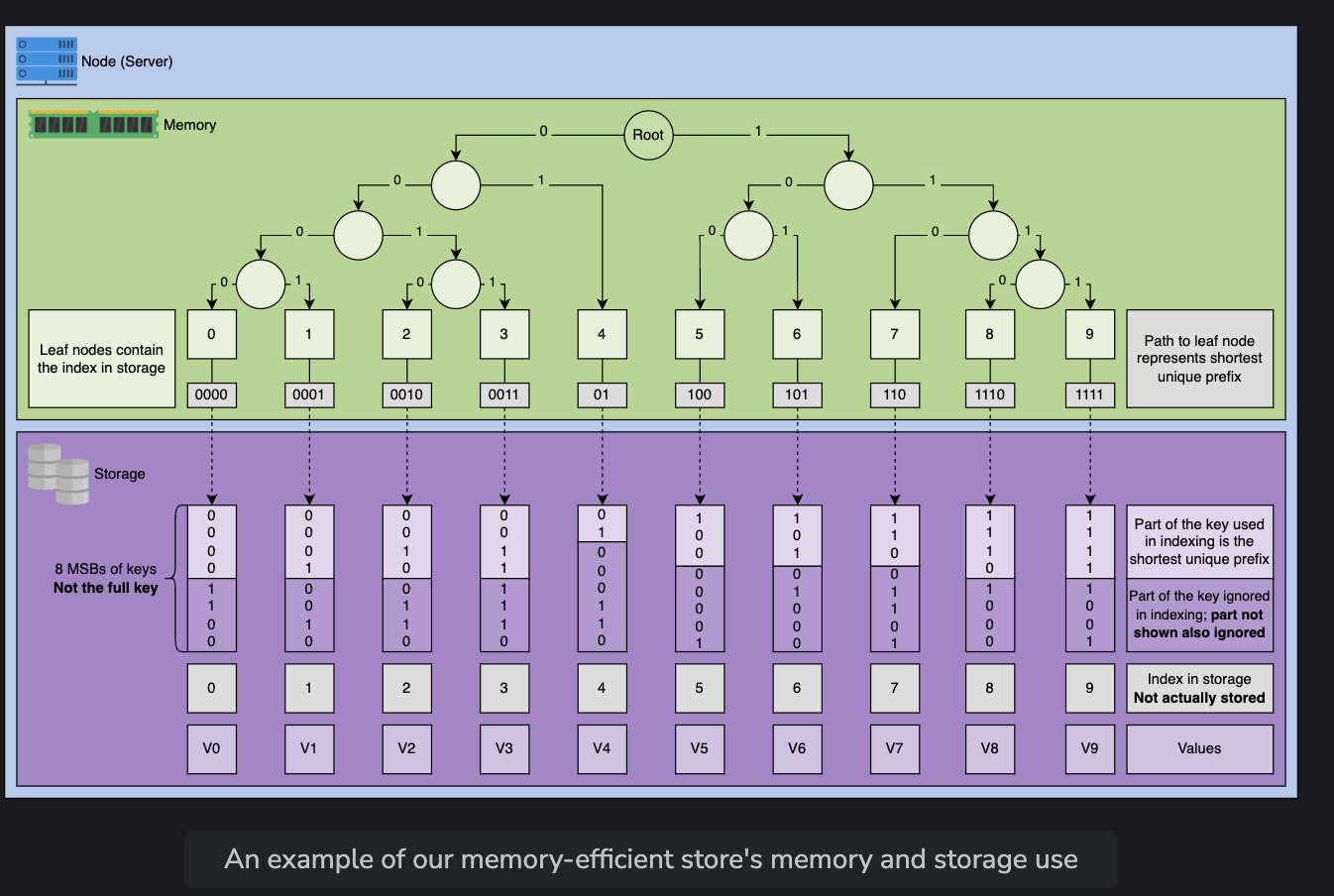

At the final level, we need to compact more. These will sort keys and merge them using a trie
